WPO Outdoor Wallpaper

WPO Series
Light Weight Energy Saving Outdoor Wallpaper

Never go black, power backup design & failure proof device modules with super high contrast ratio.

WPO Modules: P2.9, P3.91, P4.81, P5.2, P5.33, P5.95, P6.25, P6.67, P7.82, P8, PIO, P10.4 & P15.6

Technical Specifications

Light Weight

Low Voltage

High Refresh Rate

Easy Alignment

High contrast ratio

Wide viewing angle

Invisible Cables

Front/Rear Access

Multiple Use

Adjustable Connector

Easy to install and maintain

Quick Installation

Product Details

  1. 22kg/m2 is lightest weight base on front & back service outdoor panel.
    13 Pixel Pitches in WPO series available. (P2.9, P3.91, P4.81, P5.2, P5.33, P5.95, P6.25, P6.67, P7.82, P8, PIO, P10.4 & P15.6)

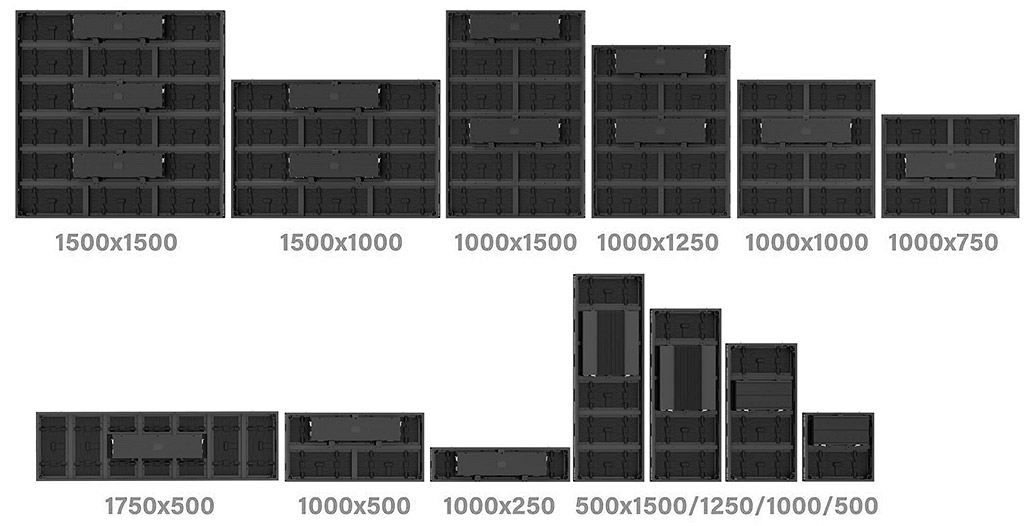

  2. WPO can handle:
    250mm, 500mm, 750mm, 1000mm, 1250mm, 1500mm Height & 500mm, 1000mm, 1500mm, 1750mm width.
    Also: 320mm, 640mm, 960mm, 1280mm, 1600mm optional in width and height.
  3. Mask design determines the perfect contrast ratio.
  4. Low Voltage PCB design.
    Based on SMD, BESD reach 7,000 nits, WPO7.8 &10.4 just need 350w max.
    Absen / Unilumin officially is 500W. Below comparison based on lOOOO nits
  5. NEVER GO BLACK: Power Backup Design & Failure Report.
  6. Auto-Calibration Memory with Intelligent Modes
  7. Seamless 3D design

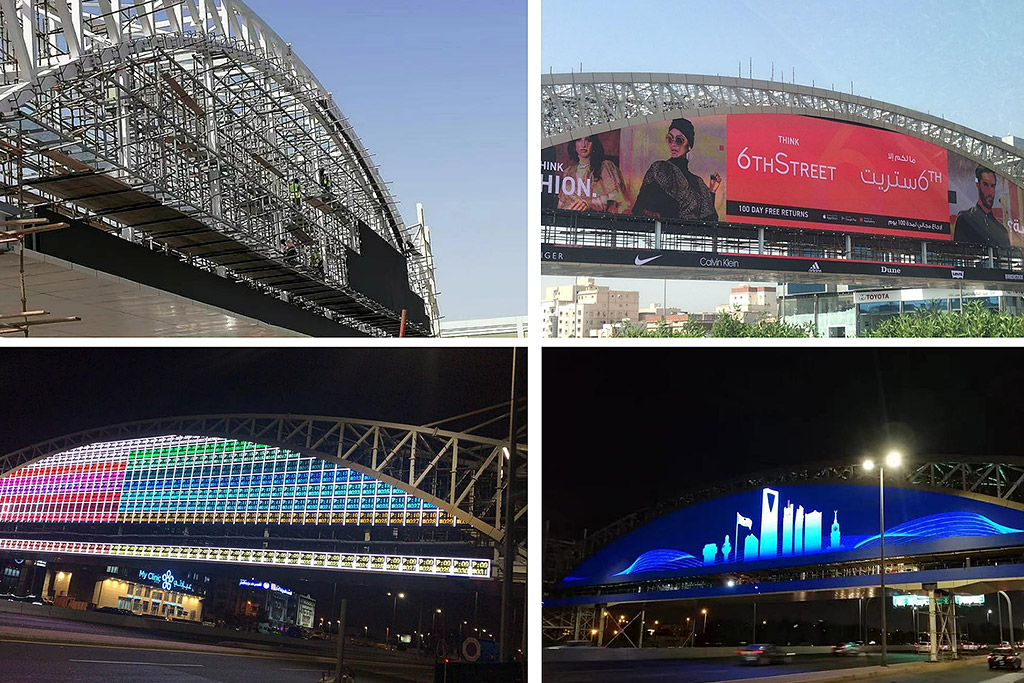

  8. Curve panels and round screens

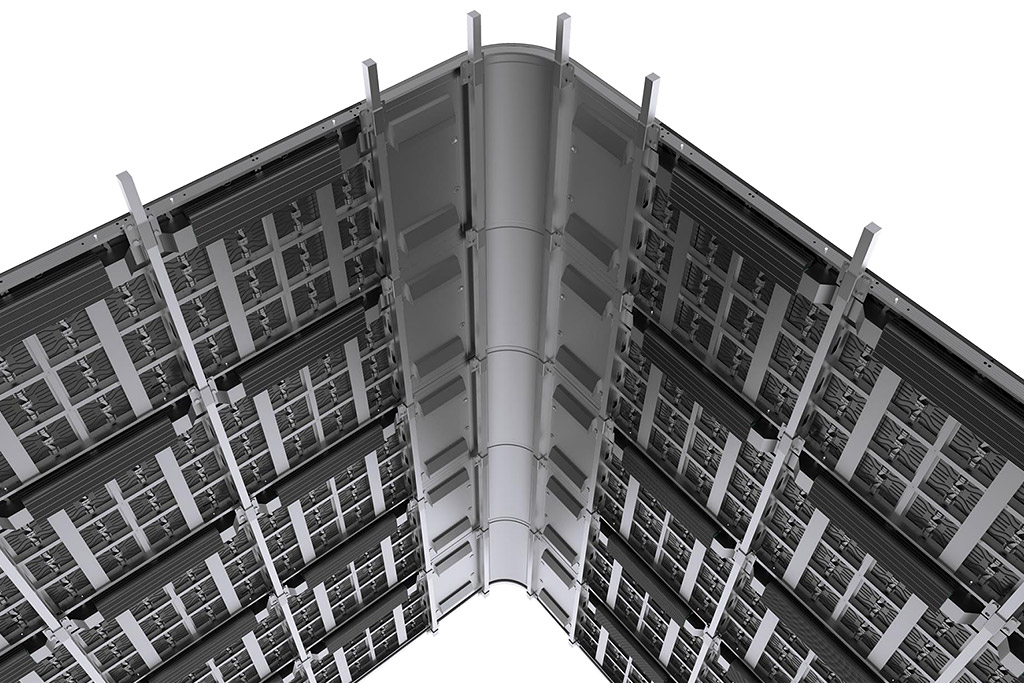

Special Corner AR Module Design for Seamless 3D Solution

Module Size:62.5mm x 250mm

6°cut corners on both sides, smallest arc radius ≥0.3m

Seamless and smooth splicing with WPO series

Correct colors reproduction with WPO series

Intelligent & Efficient

  • Memory with Intelligent Module
  • AR Module

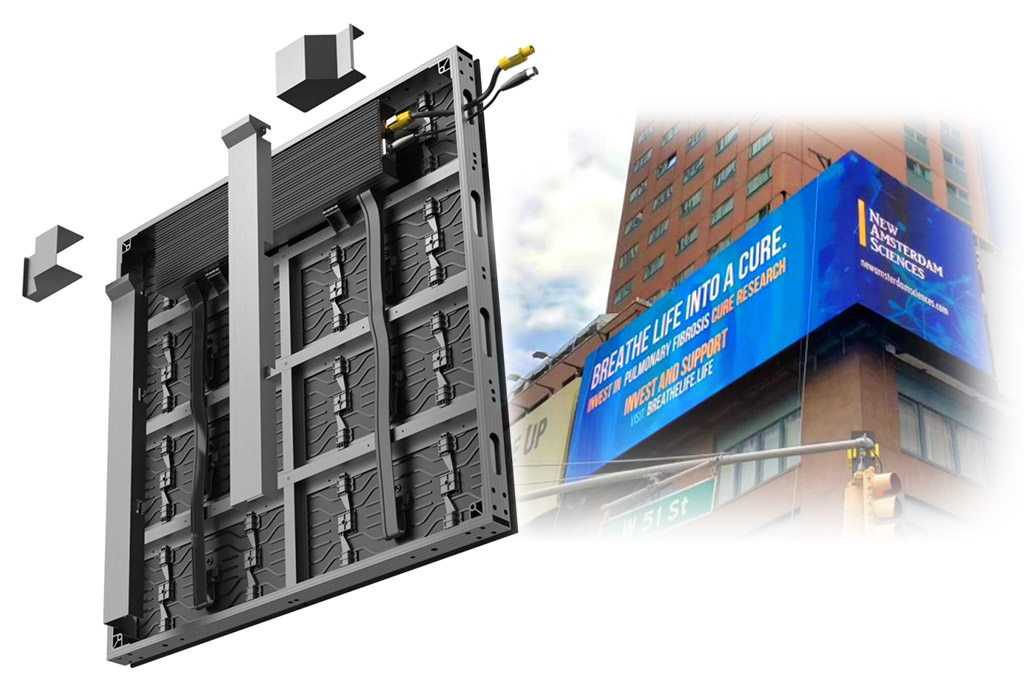

  • Invisible cabling design at panels’ backside.
    Considering the safety of pedestrians, WPO provides extra cable covers to achieve invisible cabling at the backside.
  • BESD launched 1 x 1 m cabinet size.
    To avoid voltage drop, BESD power the 250 x 500 mm module from middle part.
  • BESD die-casting power box has fins design for better heat radiation.
  • Wall mounted Slim led screen solution.

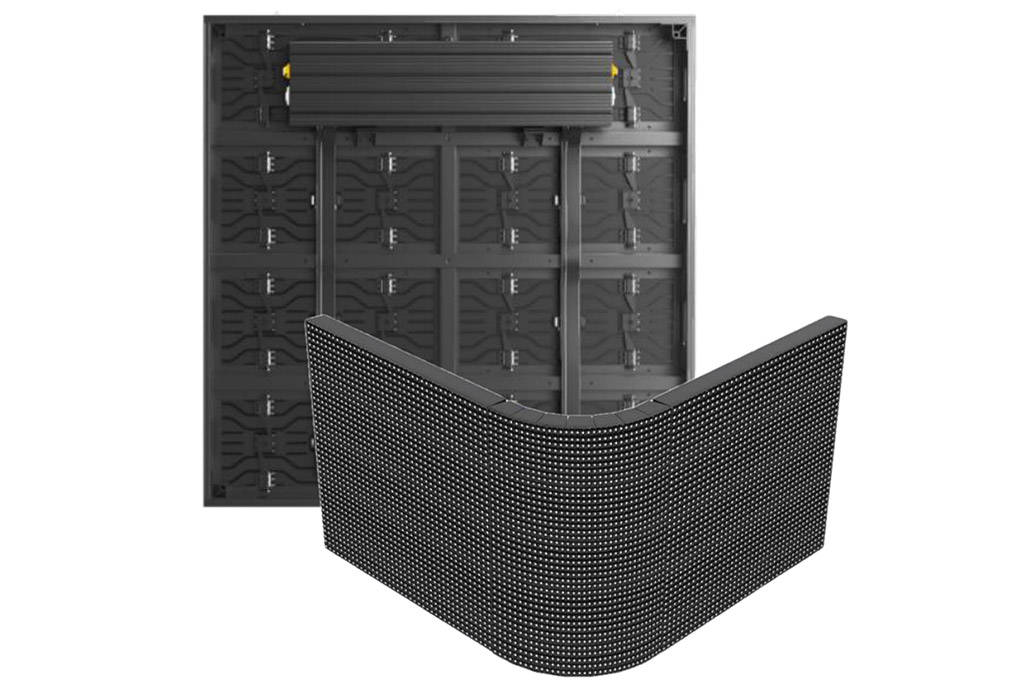

  • BESD module is corner and flat screen 2 in 1 design.

Technical Specifications

Low Voltage PCB design.
Based on SMD, BESD reach 7,000 nits, WPO7.8 &10.4 just need 350w max.
Absen / Unilumin officially is 500W.
Below comparison based on lOOOOnits:

Model No. WPO10.4 WPO7.8 WPO6.25 WPO5.2
Pixel Pitch 10.4mm 7.82mm 6.25mm 5.2mm
Brightness (cd/m2) 10,000 10,000 10,000 10,000
Max. Power Consumption (per m2) 500W 500W 500W 550W
Absen XD Plus series 650W 500W 500W 700W
Unilumin Usurface III 650W 500W 500W 700W


Click to download more technical details in PDF document.

Contact us to get a free consultation.

Please provide us a brief details of your project and we will deliver the best result.
