MOK: MicroLED Outdoor Kiosk, Cloud-based
Next-gen MicroLED cloud outdoor display solution.
The Haikoto MicroLED outdoor GOB display merges cutting-edge MicroLED visual performance with a smart cloud-based management platform, redefining outdoor advertising through enhanced visuals and streamlined control.
Offered in various sizes, the displays can be seamlessly combined to form flexible layouts and accommodate diverse installation needs. Delivering exceptional image clarity, simplified management, and reliable performance in challenging environments, it provides a powerful solution for modern outdoor advertising.

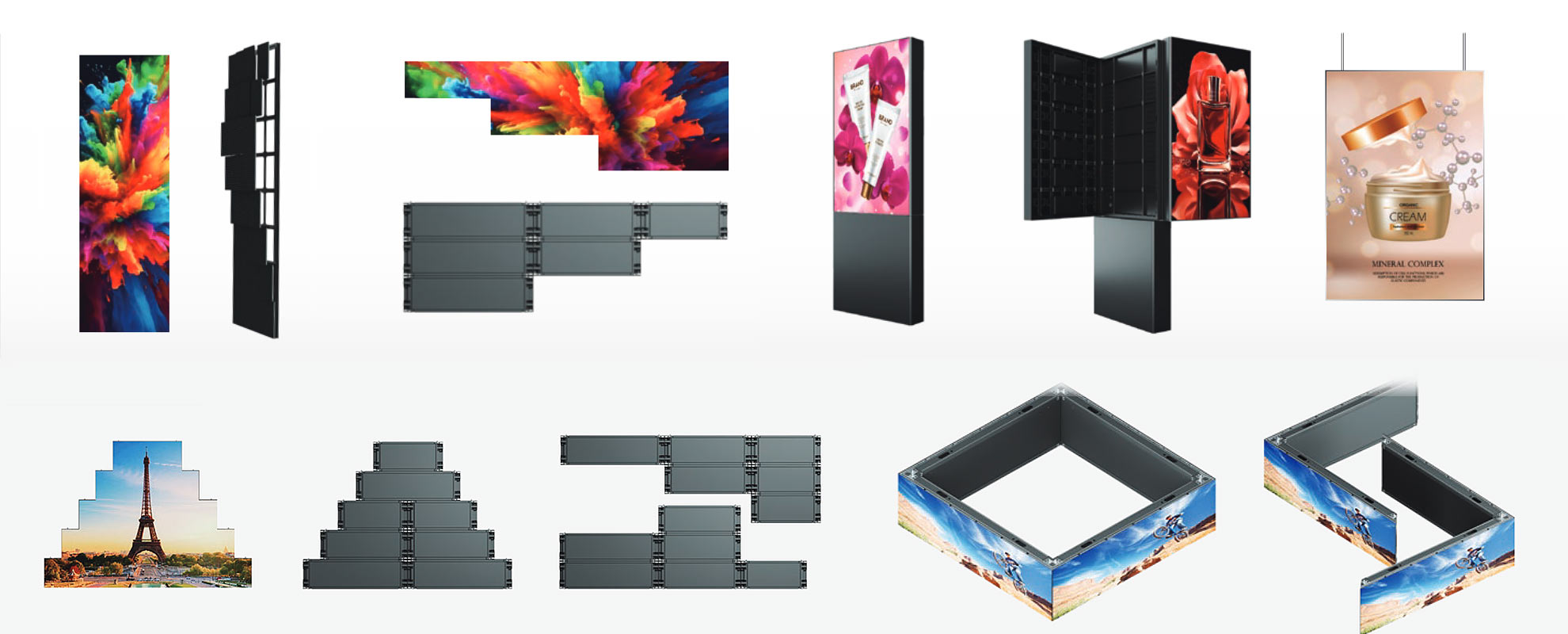

Multi-Size modular display system provides free splicing and versatile installation options.
Available in three sizes (960 × 270 mm, 800 × 270 mm, and 640 × 270 mm), the cabinets feature a 45° cut-edge right angle, enabling seamless assembly of four-sided LED display structures.
| Outdoor use | Yes |
| IPixel Pitch (mm) | 1.25 / 1.538 / 1.875 |
| Installation and maintenance access | Rear & Front |
| Sizes | 960 × 270 mm 800 × 270 mm 640 × 270 mm |
Product Features
- MicroLED Technology
Using ultra fine pitch MicroLED chips to achieve ultra high definition display effects, with delicate images and bright colors. - High Brightness Adjustment
Automatically adjust the brightness according to the ambient light to ensure that the advertising content is clear and visible under direct sunlight. - 3 Sizes Spliced Freely
Haikoto MOK series LED displays are designed with right-angle splicing capabilities, allowing for seamless corner installations that enhance creative and impactful visual presentations. This modular design enables customized configurations to fit diverse spaces and requirements, from small LED displays to large outdoor billboards. Offering high brightness and exceptional durability to withstand various weather conditions. This innovative feature makes Haikoto MOK series a perfect choice for modern outdoor digital signage. - Variety of pixel pitches and sizes
Haikoto MOK series offer a variety of pixel pitches and sizes, such as 74 “, 86”, etc., as well as many installation methods, including single-sided, double-sided, stacking, wall mounted, hanging and any combination of modules, do different creative display, greatly improve the product’s application scalability.
- Waterproof and Dustproof Design
Compliant with IP65 protection level, ensuring stable operation of device in harsh outdoor environments. - Wide Temperature Range of Operation
Supports normal operation in extremely cold or hot environments, meeting the outdoor advertising needs of different regions and seasons - Seamless Splicing Technology
Modular design, supports seamless splicing, and achieves display effects of ultra large size and arbitrary splicing - Low Bright & High Gray
Haikoto MOK achieves 16bit gray performance. The higher the gray level, the higher the picture hierarchy and brightness, and the more detailed the image can be displayed with less information loss. - Enhanced Protection LED Display Technology
Process adopts three-dimensional coating and comprehensive protection, with a smooth and seamless surface, greatly improving the performance of moisture and water resistance, enhancing protection level, reducing the LED defect rate, and having functions such as anti-collision and easy maintenance. It has stronger compressive strength and good anti salt spray effect, extending the service life.
Energy & Environment
Low Power Consumption
MicroLED technology combined with intelligent dimming reduces energy consumption.
Efficient Heat Dissipation System
MicroLED new technology, using silent PFC power supply and circulating air channel improve heat dissipation, ensuring stable performance under high-intensity loads.
Cloud-based intelligent management system
- Safety & Reliability
Experience uncompromised protection with advanced data channel encryption and continuous monitoring of equipment performance. Certified with Level 3 classified protection access, ensuring secure and dependable operations at all times. - Flexible Networking & Perfect Synchronization
Seamlessly connect through 4G, 5G, Wi-Fi, or LAN. Enjoy precision with NTP/GPS synchronization and achieve flawless multi-screen, frame-level synchronized playback for a unified visual experience. - Smart Cluster Management
Effortlessly organize and control your network with flexible terminal grouping. Distribute content efficiently and execute large-scale, global program releases with ease. - Total System Control
Stay in command wherever you are. Access real-time system insights, including graphical cable routing, voltage levels, temperature readings, and input signal status—all from a single interface.
- Instant Operational Feedback
Be alerted the moment an issue arises. Automatic SMS and email notifications ensure rapid response, while QR code scanning simplifies maintenance. Monitor alerts in real time directly from your mobile devices. - Real-Time Monitoring & Data Insights
Leverage intelligent analytics to track equipment performance, detect faults, and evaluate alarm data. Generate predictive insights, including failure probability, system health status, and maintenance recommendations. - Versatile Scene Adaptability
Designed for diverse applications, the system supports mainstream video formats and delivers powerful hardware decoding for smooth, high-quality visuals. Flexible layouts and rich media options enhance every display scenario. - Intelligent Operational Tools
Enhance efficiency with LBS-based targeted advertising and mobile accessibility via smartphones and tablets. Integrate seamlessly with existing platforms through open API support for a truly connected ecosystem.

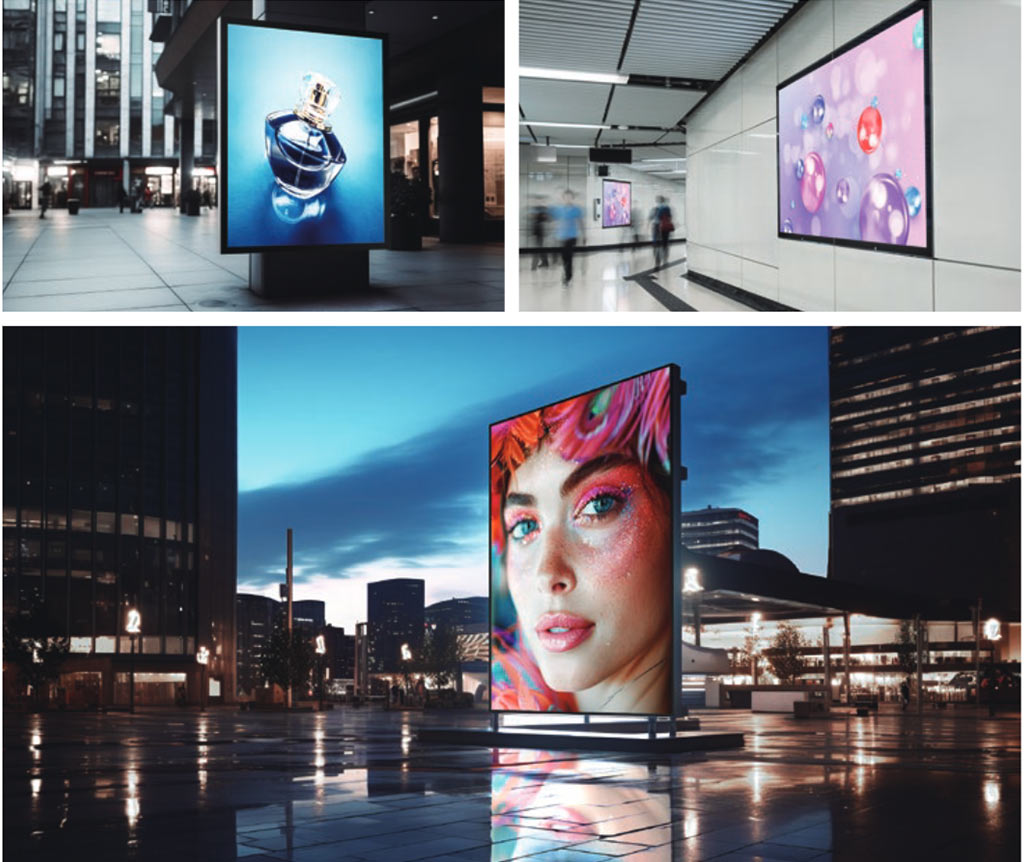

Extensive applications
The Haikoto MicroLED Outdoor Kiosk delivers outstanding visual performance, smart cloud management, and reliable all-weather durability. Designed for energy efficiency and sustainability, it helps your advertising stand out in outdoor spaces while shaping the future of digital communication.
- Commercial centers
Captures attention in shopping malls, pedestrian streets, and plazas, enhancing brand visibility and driving customer engagement. - Transportation hubs
Ideal for airports, high-speed rail stations, and metro systems, delivering impactful visuals while effectively communicating brand messages to travelers. - City landmarks
Enhances skyscrapers, bridges, parks, and iconic locations, showcasing city identity and culture through dynamic digital displays. - Sports events and activities
Creates immersive visual experiences that energize audiences and elevate event atmosphere and engagement.
Technical Specifications Portable LED Display
Industrialization certification
Haikoto MOK meets international standards for electrical safety, electromagnetic compatibility, and environmental protection,
with certifications including CCC, CNAS, CB, CE, cTUVus, FCC, RoHS, REACH, and WEEE, ensuring dependable global deployment.
| Kiosk Series | MOK1.2 | MOK1.5 | MOK1.8 |
|---|---|---|---|
| LED Package | SMD0606 | SMD1010 | SMD1010 |
| Pixel Pitch (mm) | 1.25 | 1.538 | 1.875 |
| Module Resolution (dots) | 128×216 | 104×176 | 84×144 |
| Module Size (mm) | 160×270 | 160×270 | 160×270 |
| Modules / Cabinet (W×H) | 6×6 / 6×1 / 5×1 / 4×1 | 6×6 / 6×1 / 5×1 / 4×1 | 6×6 / 6×1 / 5×1 / 4×1 |
| Cabinet Resolution (dots) | 768×1296 / 768×216 / 640×216 / 512×216 | 624×1056 / 624×176 / 520×176 / 416×176 | 504×864 / 504×144 / 420×144 / 336×144 |
| Pixel Density (points/㎡) | 640,000 | 423,704 | 280,000 |
| Cabinet Dimension (W×H×D mm) | 967×1627×90 / 960×270×65 / 800×270×65 / 640×270×65 | ||
| Weight per Cabinet (kg) | 50 / 9 / 8 / 6.5 | ||
| Weight per sqm (kg) | 32 / 34 / 37 / 38 | ||
| Cabinet Material | Aluminum profile | ||
| Protection Level | IP65 | ||
| Brightness Max Calibrated (nit) | 3000 cd/㎡ | 3000 cd/㎡ | 3500 cd/㎡ |
| Colour Temperature (K) | 3000 – 10000 | ||
| Viewing Angle (Horizontal) | 160° | ||
| Viewing Angle (Vertical) | 140° | ||
| Contrast Ratio | 10000:1 | ||
| AC Operation Voltage | AC100–240V (50/60Hz) | ||
| Max Power Consumption | 720 W/㎡ | ||
| Average Power Consumption | 240 W/㎡ | ||
| Grayscale | 16 bits | ||
| Refresh Rate | ≥3840 Hz | ||
| Frame Rate | 50 & 60 Hz | ||
| Lifetime | 100,000 hrs | ||
| Installation Access | Rear / Front | ||
| Module Maintenance | Rear / Front | ||
| PSU & Others Maintenance | Rear / Front | ||
| Max Hanging Qty. | 1 (75 / 86 / 98 inch) | ||
| Operating Temperature | −20 ~ 50 ℃ | ||
| Storage Temperature | −30 ~ 60 ℃ | ||
| Operating Humidity | 10–90% RH (no condensation) | ||
| Storage Humidity | 10–85% RH (no condensation) | ||
